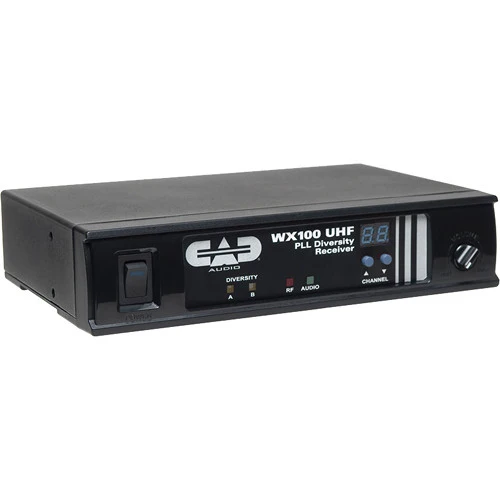

CAD WX100A UHF Wireless Microphone Receiver - DEMO

The CAD WX100A UHF Wireless Microphone Receiver was designed to ensure the highest standards in connectivity in the most congested RF environments. The WX100A features an intuitive control scheme that allows easy operation by casual non-professional users. These designs along with an array of useful accessories make the WX100A a perfect solution for A/V suites, flexible meeting spaces or any situation that requires easy to use, reliable wireless.

Maximum Output Level	Balanced output: -10 dBV Unbalanced output: 10 dBV
Output Impedance	Balanced output: 200 ohms Unbalanced output: 100 ohms
RF Bandwidth	38.4 MHz
Switchable Frequencies	16
RF Sensitivity	95 dBm, > 75 dB S/N
Image Rejection	> 85 dB
Squelch	Noise squelch and tone squelch
Diversity Method	True spatial diversity
Dimensions	7.9 x 5.0 x 1.75" (200 x 150 x 44 mm)
Net Weight	1.3 lb (0.6 kg)

Packaging Info

Package Weight	3.9 lb
Box Dimensions (LxWxH)	16.3 x 13.4 x 3"
