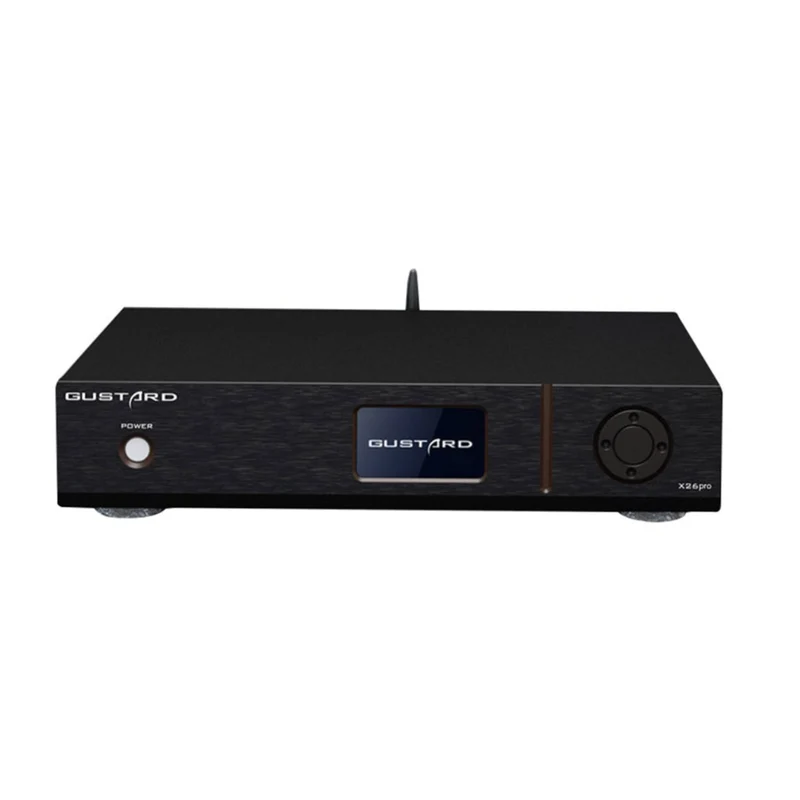

Gustard X26 Pro Full-Balanced MQA DAC

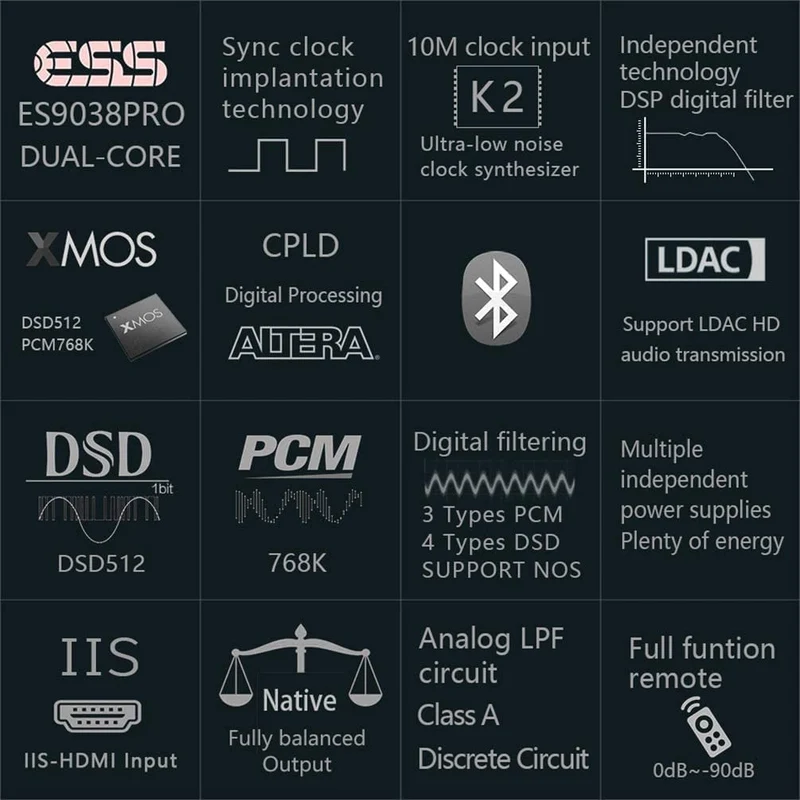

• Synchronous Clock Implantation Technology
• Independent R&D of DSP Digital Filter
• K2 Clock Synthesizer Built-in

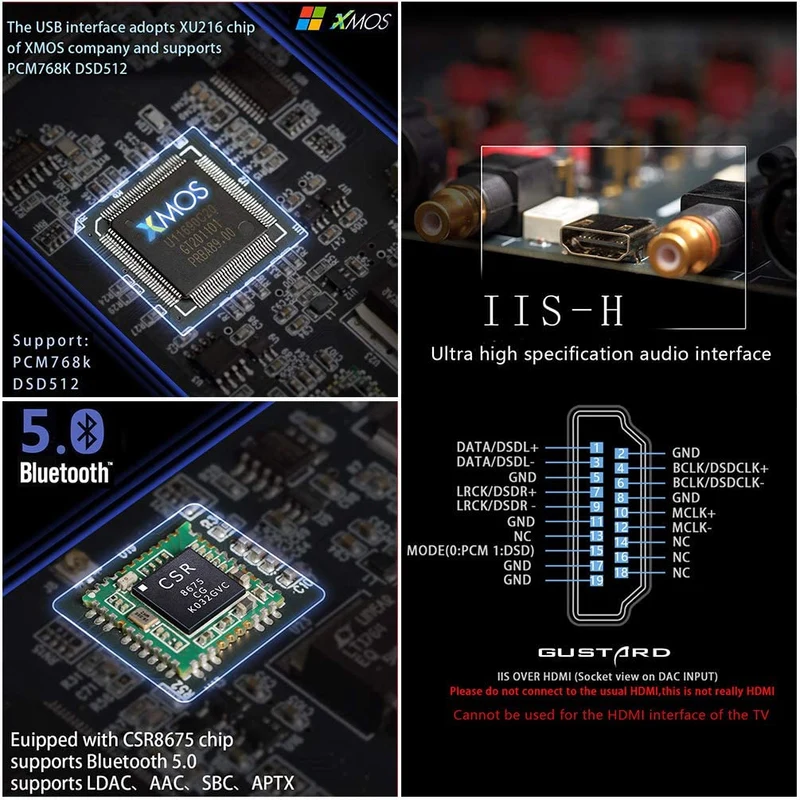

• Bluetooth 5.0/USB/Coaxial/Optical/IIS
• Dual ES9038PRO Chips
• Full Funtion Rmote Control

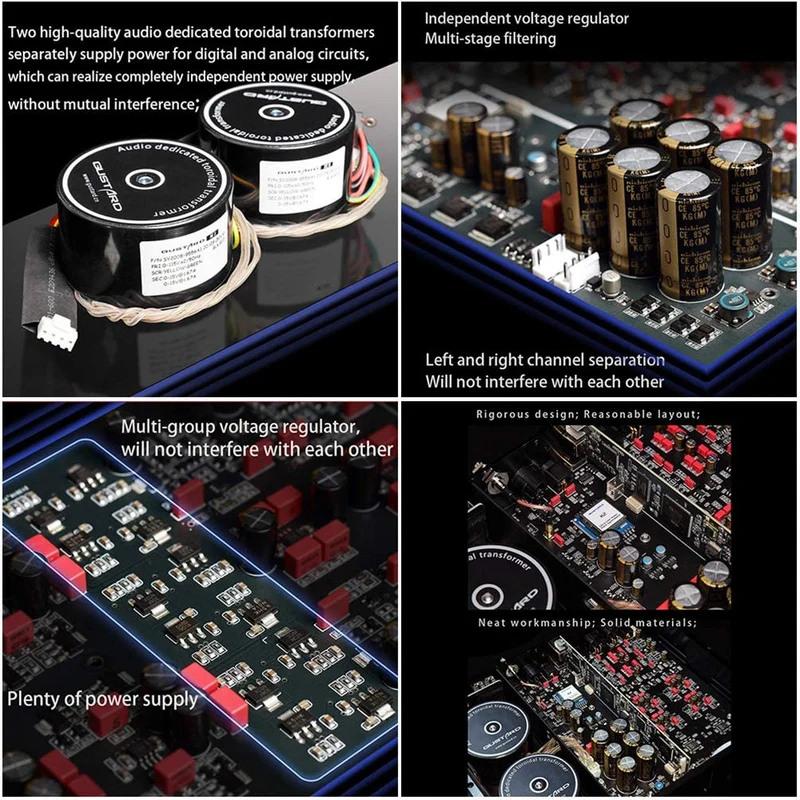

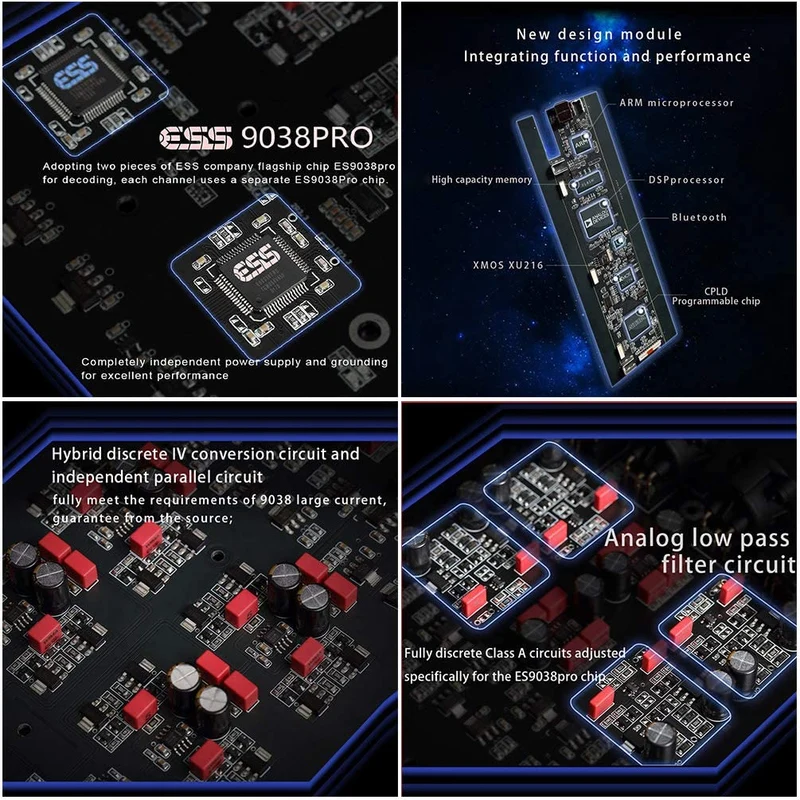

X26 Pro uses two ESS chips ES9038PRO for dual mono audio digital-to-analogue conversion. Each channel uses a separate ES9038Pro chip, and each channel is a completely independent power supply and grounding for best performance.

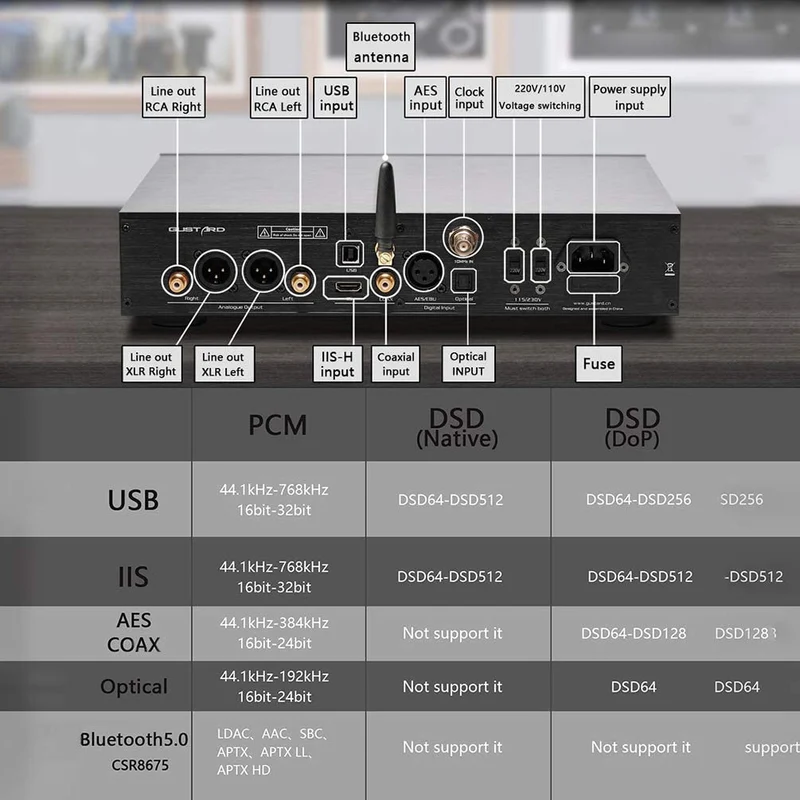

Various Input and Output Mode: Gustard X26 Pro with USB/IIS/AES/Coaxial/Optical/Bluetooth 5.0(CSE8675)input mode; with RCA and XLR out to meet different needs.
Ultra-low Noise K2 Clock Synthesizer: Abandon the front-end clock source, DAC only uses local femtosecond clock or external 10M constant temperature clock source synthesis as the main clock. Therefore, the impact of the front-end signal source clock performance on the decoding link is greatly reduced.USB/IIS/AES/Coax/Opt/BT interface can also enjoy the performance improvement brought by the synthesizer.
CPLD Programmable Logic Chips: Self-constructed digital integrated circuits with logic functions, clock management, 2nd PLL, digital shaping, DOP decoder, PCM/DSD depop switch and other exclusive technologies have laid a solid foundation for excellent sound quality.
DSP Digital Filtering: The solution is a high-performance digital filter solution developed on the Analog Device SHARC digital audio dedicated DSP platform.It is equipped with a self-developed high-performance anti-aliasing noise algorithm， which achieved better sound quality performance.
