TA-VSX118B-WH 18" Direct Radiating Passive Subwoofer for Portable and Installation Applications (White)

Tannoy VSX118B 18" Direct Radiating Passive Subwoofer for Portable and Installation Applications (White)

VSX118B-WH

The 4,000-Watt VSX118B-WH is a direct radiating passive 18" subwoofer that is ideally suited for a broad range of speech and music sound reinforcement applications in both fixed, portable, and touring audio systems. VSX118B-WH’s superb low frequency reproduction makes it the perfect choice for deployment in clubs, bars, theatres and AV applications.

Stunning Performance

A ported bass reflex system, the VSX118B-WH features a high powered 18" low frequency driver that provides extended low frequency response to well below 40 Hz – for chest-pounding bass. Fast and accurate transient response enables the VSX118B-WH subwoofer to generate copious quantities of tight low end output that is virtually distortion-free.

Versatility

VSX118B-WH Subwoofers can be easily deployed in a multitude of configurations, thanks to the integral M10 rigging points and blanking plate for an optional VTH pole mount. For touring and portable applications, the enclosures also feature our Integrip handles, which are ergonomically integrated into the top of each cabinet.

Construction and Connectivity

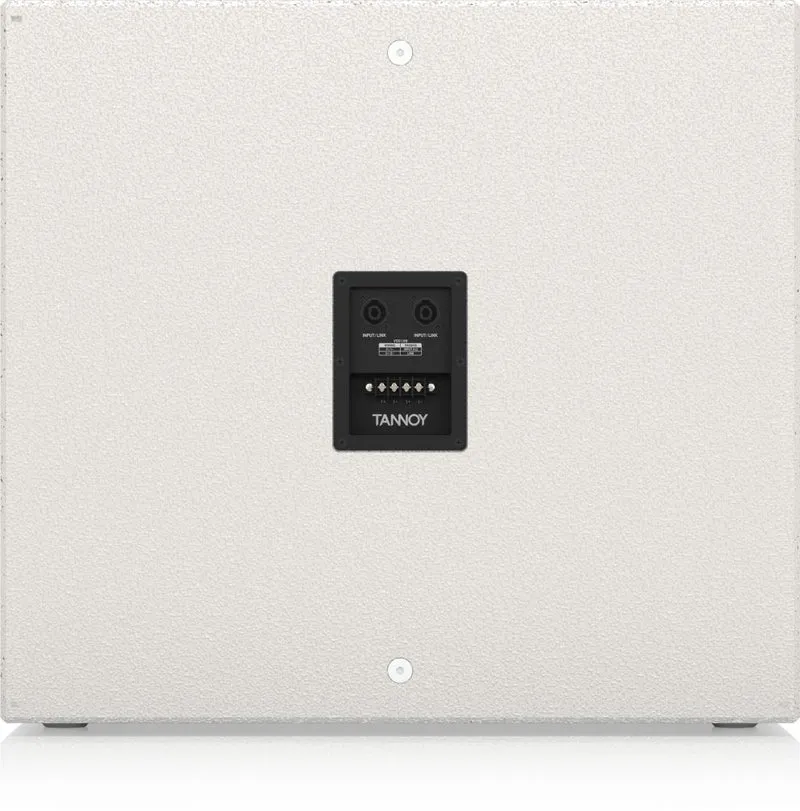

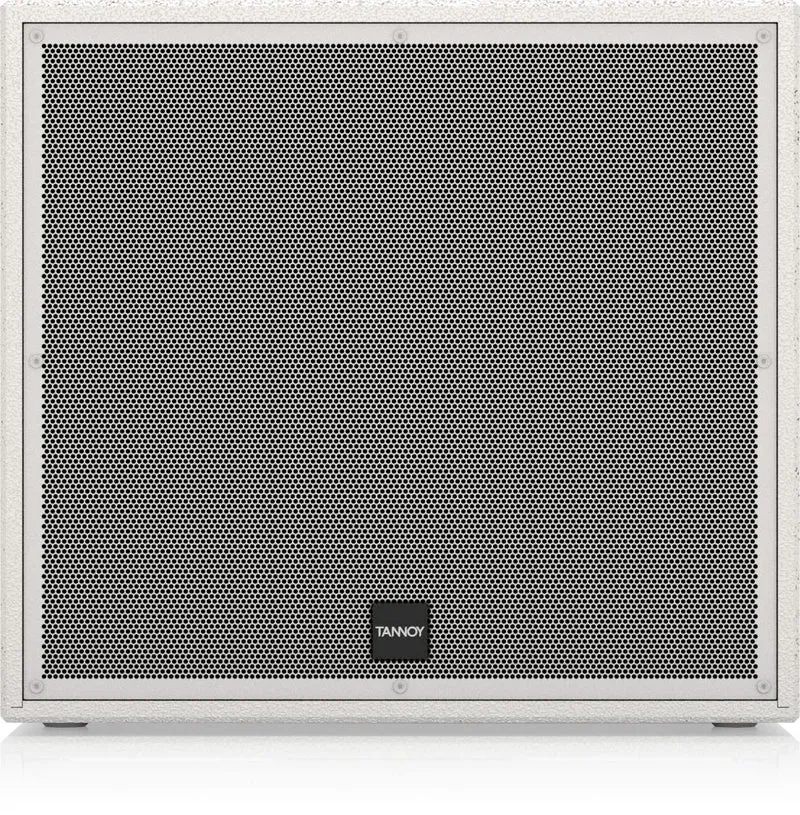

Finished in a hard wearing semi matt white paint, the cabinet is constructed of internally braced plywood and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. The rear panel connector plate carries Neutrik speakON * NL4 and barrier strip connectors for input and link connections to accommodate additional subwoofer, or satellite full range loudspeakers.

Frequency response 40 Hz – 3 kHz, +/-3 dB
32 Hz – 4 kHz, -10 dB Recommended low pass crossover 80 – 300 Hz, 24 dB/Oct Nominal dispersion Half space Power handling (IEC) 1000 W continuous, 4000 W peak Sensitivity 99 dB (1 W @ 1 m) Maximum SPL 129 dB continuous, 135 dB peak Impedance 8 Ohm Components 1x 18″ (460 mm) LF driver

Enclosure

Connectors 2x Neutrik speakON NL4
1 x barrier strip terminals Wiring Pins 1+ / 1- input, pins 2+ / 2- link Construction 18 mm (3/4″) plywood Finish Semi matt black paint (white optional) Grille Powder coated perforated steel Color Black Dimensions (H x W x D) 23.4 x 25.6 x 25.6″ (594 x 650 x 650mm) Net weight 94.9 lb (43.1kg)
